Chemical mechanical planarization is the process step that enforces the geometry contract between one layer of a device and the next. Every interconnect structure, every shallow trench isolation fill, every tungsten plug assumes that the surface it lands on is flat to within a tolerance measured in angstroms across a 300 mm wafer. CMP is how that flatness is achieved, and the slurry—the abrasive suspension circulated between the wafer and the polishing pad—is the consumable that makes or breaks the process.
The slurry receives less coverage than the photolithography stack, less than the etch gas chemistries, less than the deposition precursors. This is partly because it is unglamorous—a liquid that looks like industrial milk—and partly because its failure modes are slow and diffuse. A slurry problem does not usually stop the tool. It degrades yield, quietly, over days or weeks, until someone connects a scratch inspection trend to a lot of IBC totes that arrived from a new supplier run.
What slurry is and what it contains
A CMP slurry is a colloidal suspension of abrasive particles in an aqueous chemistry that is tuned for a specific polishing application. The abrasive is most commonly fumed or colloidal silica, cerium oxide for oxide applications, or alumina for certain metal and barrier processes. The particle size distribution is not a single number—it is a curve, and the tail of that curve, specifically the population of large particles above two or three micrometres, determines the scratch risk more than the median diameter does.
The chemistry around the particles is application-specific. An oxide slurry is typically acidic with a corrosion inhibitor package. A copper slurry contains an oxidiser, usually hydrogen peroxide, a complexing agent, and a corrosion inhibitor such as benzotriazole. A tungsten slurry is strongly oxidising. Each chemistry is optimised for a removal rate target and a selectivity ratio—how much faster the slurry removes the target material compared to the stop layer beneath it.
That selectivity ratio is what makes slurry a process variable, not just a consumable. A copper slurry with drift in oxidiser concentration will change copper removal rate without proportionally changing the tantalum barrier removal rate, producing over- or under-polished structures that carry into the next metal deposition with unpredictable consequences.
The cold chain problem that most fabs underestimate
Slurry is not a stable product once it leaves the manufacturer's blending and quality control environment. The colloidal particle suspension is metastable: under the right conditions of temperature, shear, or contamination, particles agglomerate. Once agglomeration starts it is not reversible by mixing. The slurry that arrives at the point-of-use delivery system is not necessarily the slurry that was shipped.
Temperature is the primary cold-chain variable. Most silica and ceria slurries have a stability specification, typically a storage temperature range of 5 to 25 degrees Celsius, and a requirement that the slurry not freeze. Freezing is catastrophic: ice formation destroys the colloidal structure irreversibly. High temperature accelerates the Ostwald ripening process through which smaller particles dissolve and redeposit on larger ones, shifting the particle size distribution toward larger sizes.
The practical cold-chain failure modes are not the obvious ones—an IBC tote frozen in a January delivery or sitting in direct sun. They are the cumulative ones: a tote held in an uncontrolled receiving dock for three days during a Taiwan summer, or a delivery truck without temperature monitoring that makes six stops before reaching the fab. Individual deviations that are each within specification but whose combination pushes the cumulative thermal exposure beyond what the stability testing modelled.
Fabs that have implemented end-to-end temperature logging on slurry deliveries—logger in the tote from fill at the supplier through receiving at the fab—consistently find exceedances they did not know existed. The decision of what to do with that data then becomes a procurement and process engineering negotiation: what exceedance is tolerable, what triggers a return, what requires analytical hold before use.
Point-of-use delivery: where the slurry meets the tool

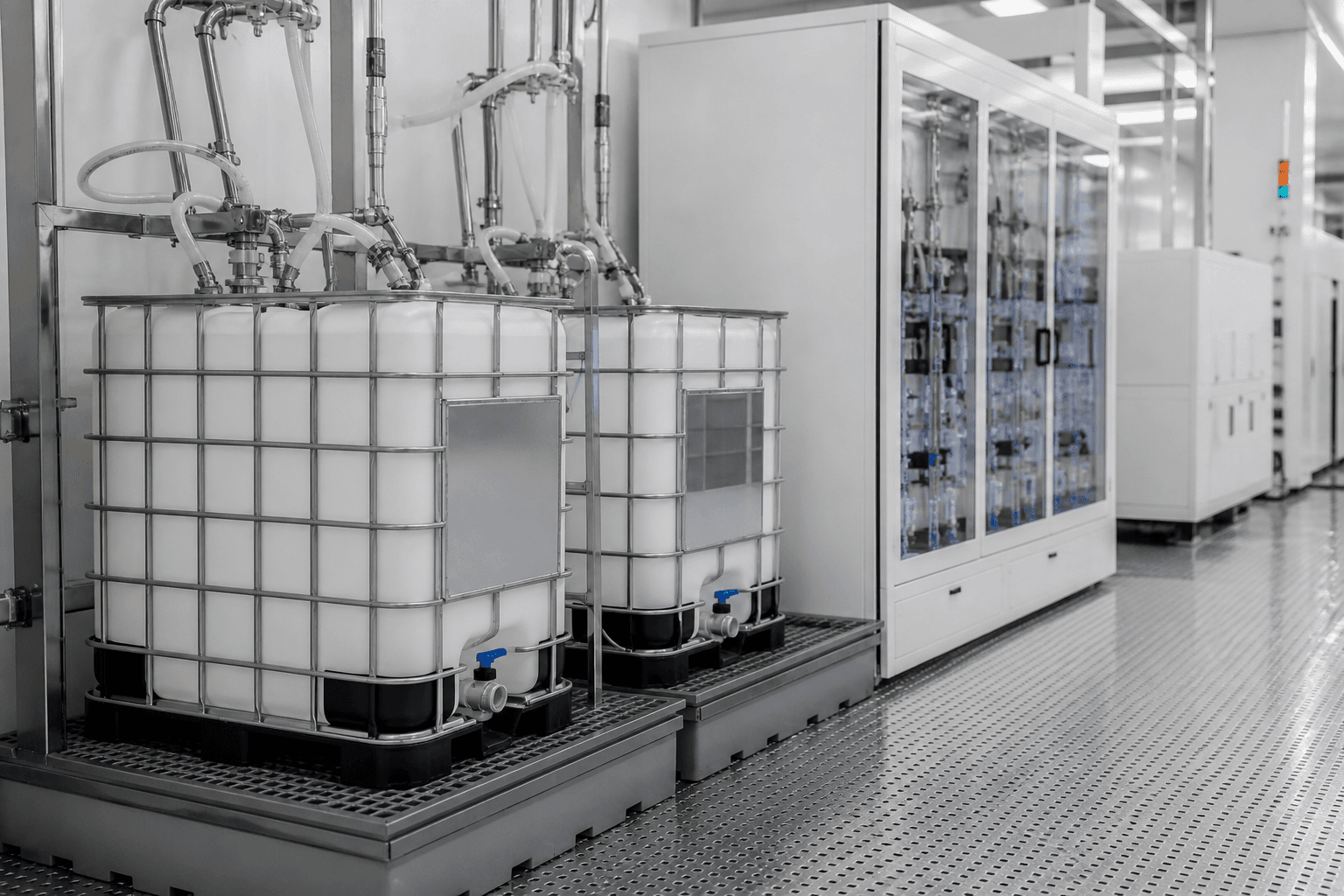

The slurry management system inside the fab—the network of tanks, pumps, filtration stages, and distribution piping that moves slurry from IBC totes to the polish head—is a source of degradation in its own right.
Recirculation is the first concern. Most point-of-use systems recirculate slurry continuously to prevent settling. Recirculation through pump impellers subjects the particle suspension to repeated shear events. Shear does not cause agglomeration in the same way temperature does, but repeated high-shear cycles can break down the surfactant or electrostatic stabilisation layer on particles, making them more susceptible to agglomeration downstream. The pump type, speed, and recirculation flow rate are process variables that should be treated as such—consistent across tote changes, verified after any maintenance.
Filtration is the second. Point-of-use filters protect the tool from large-particle damage, but filter selection is a balance. A filter rating that is too tight removes not just oversized particles but the working particle population in the tail of the distribution, changing the slurry chemistry delivered to the pad. A filter rating that is too coarse allows the large-particle population responsible for scratches to pass through. The filter rating should be validated against incoming particle size data for each slurry chemistry, not assumed to be transferable from one slurry grade to another.
Piping material and dead legs are the third. Slurry is chemically aggressive. Incompatible piping materials leach metallic contamination that can trigger agglomeration or introduce trace metal contamination on the wafer surface. Dead legs in the distribution system accumulate settled particles that re-enter the flow as slugs when flow is restored. A well-engineered point-of-use system eliminates dead legs by design; an evolved system that grew by adding connections over years typically has several.
The lot-to-lot variation problem
CMP process engineers learn quickly that slurry is not a commodity. Even within a single product line from a single supplier, lot-to-lot variation in particle size distribution, pH, and chemistry concentration is real. The supplier specification is a range, not a point value. Incoming quality control sampling that catches the edges of the specification is not a quality program; it is a late-stage filter.
The effective approach is statistical process control on incoming slurry properties, tracked over time and correlated with in-process metrology—post-CMP thickness uniformity, within-wafer range, and post-CMP inspection scratch count. That correlation is the information that tells a process team whether the incoming lot variation they are accepting is actually reaching the wafer or whether the process window absorbs it.
Some fabs run a separate incoming analytical hold on any lot that shows particle size distribution drift beyond a tighter internal specification, regardless of whether it meets the supplier specification. The hold allows a small test polishing run before the lot enters production inventory. The cost of that hold—capacity, schedule, analytical time—is offset by the cost of a scratch excursion that requires repolish or, worse, that escapes to inspection and is caught at wafer test.
Disposal and environmental compliance
Slurry waste is a regulated effluent stream in every major semiconductor manufacturing geography. Spent slurry from oxide CMP contains silica particles, surfactants, and whatever the chemistry package included. Copper CMP waste contains copper ions at concentrations that exceed direct discharge limits. Tungsten CMP waste contains tungsten compounds and, depending on the oxidiser used, decomposition products.
The treatment system—neutralisation, coagulation, flocculation, and in some cases electrochemical metal recovery—is sized for average slurry consumption. Operations that increase CMP utilisation without parallel capacity reviews of the waste treatment system create compliance risk. This is not hypothetical: several fabs have discovered that adding a polish step to a new device layer pushed slurry consumption above the design basis of the effluent treatment system, requiring emergency upgrades.
Responsible slurry management connects the procurement side to the disposal side in the same engineering budget conversation. The true cost of a slurry is not the price per IBC tote; it is the price per tote plus the cost of compliant disposal of the waste stream it generates.
Qualification and change control
A slurry change—supplier, grade, or formulation revision—is a process change that requires qualification. The qualification protocol should include at minimum: incoming analytical characterisation, test polishing on monitor wafers, post-CMP metrology comparison against baseline, and post-CMP inspection scratch count comparison. Depending on the application, extended lot-to-lot correlation and a process capability study may be warranted before full production release.
The discipline that breaks down in practice is change control on the supplier side. Slurry suppliers reformulate products to improve stability, address raw material shortages, or meet evolving environmental regulations. Those reformulations may be disclosed to the customer as minor changes or may arrive as a product revision code change that is not flagged at all. A fab without active supplier engagement and systematic incoming analytical monitoring can absorb a formulation change and not connect it to a yield trend for months.
The teams that manage this effectively maintain a named application engineer contact at each slurry supplier and include slurry formulation status as a standing agenda item in quarterly business reviews. That relationship converts supplier reformulations from surprises into planned qualifications.
What the numbers should tell you

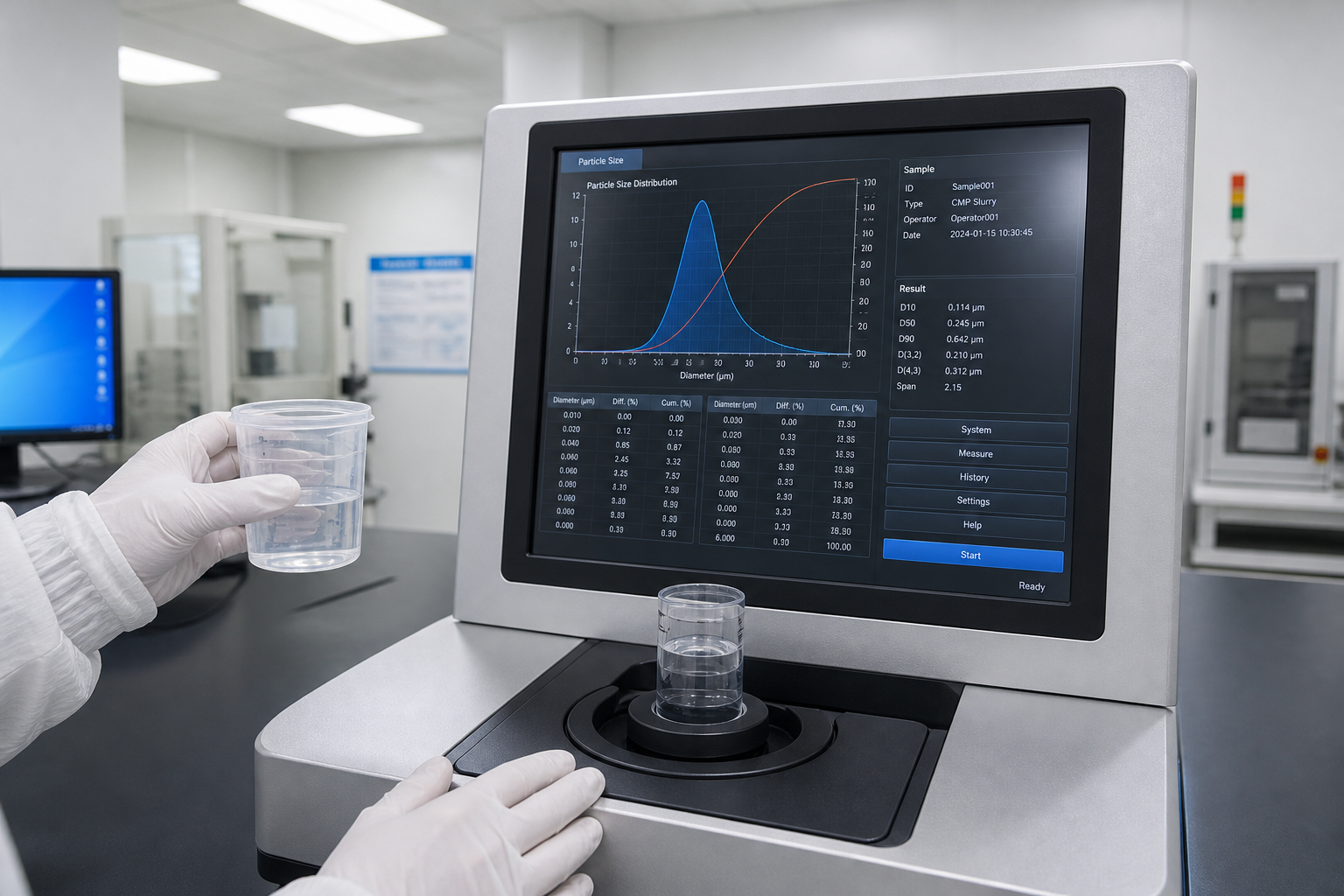

A mature CMP consumables program tracks three numbers on a monthly basis: mean particle size D50 and large-particle tail D99 on incoming lots, post-CMP scratch count per wafer pass by slurry lot, and point-of-use system recirculation temperature at the tool inlet. When those three numbers move together—when a lot with elevated D99 correlates with a scratch count uptick on the tools that received it—the program has the signal-to-noise ratio to intervene before yield is materially affected.
When those numbers are not tracked together, or when the linkage between incoming lot identity and in-process metrology is not maintained in the data system, the scratches still happen. They are just attributed to process drift, tool condition, or incoming wafer quality. The slurry supply chain is invisible until it is not, and by then the cost is already in the device test results.
