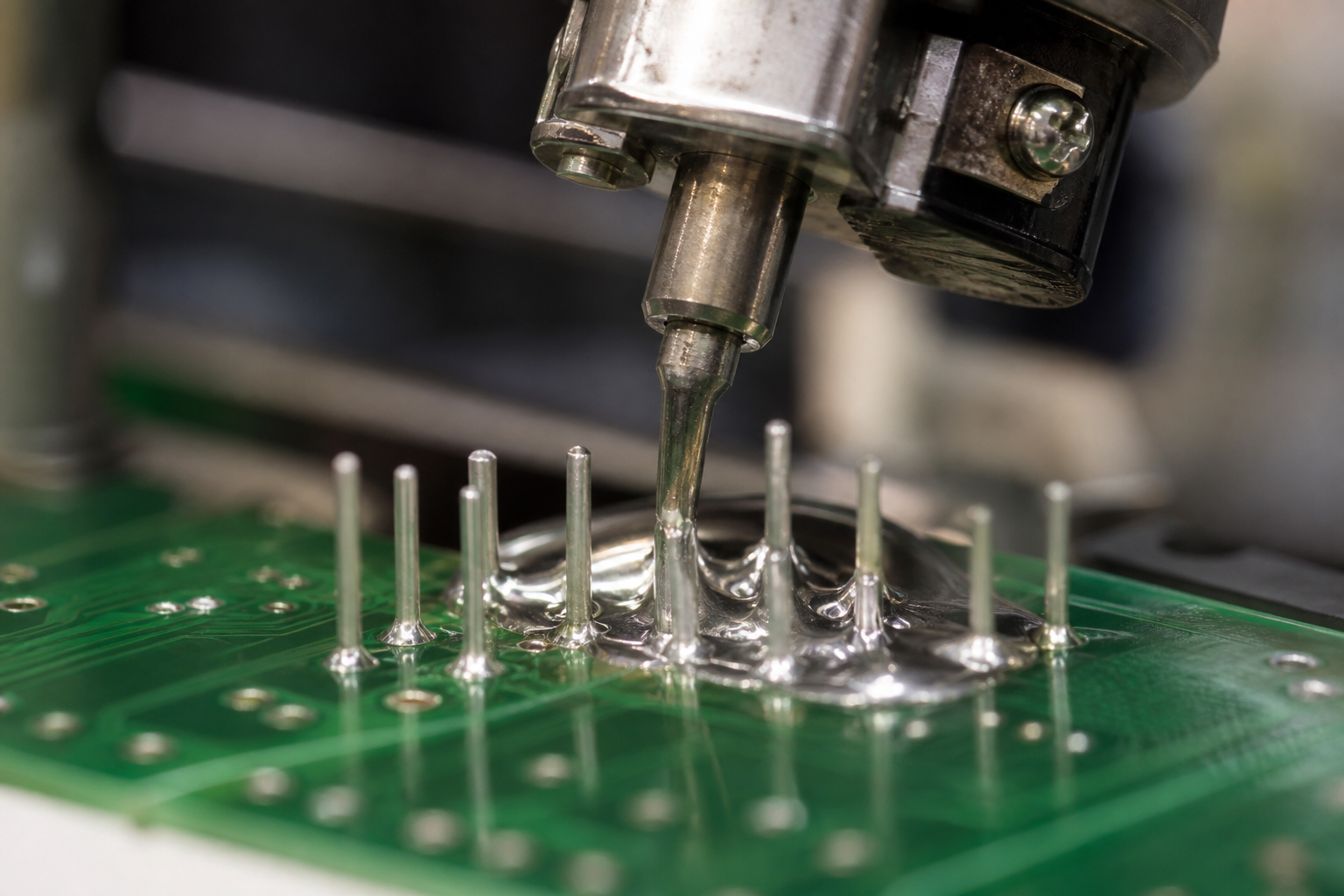

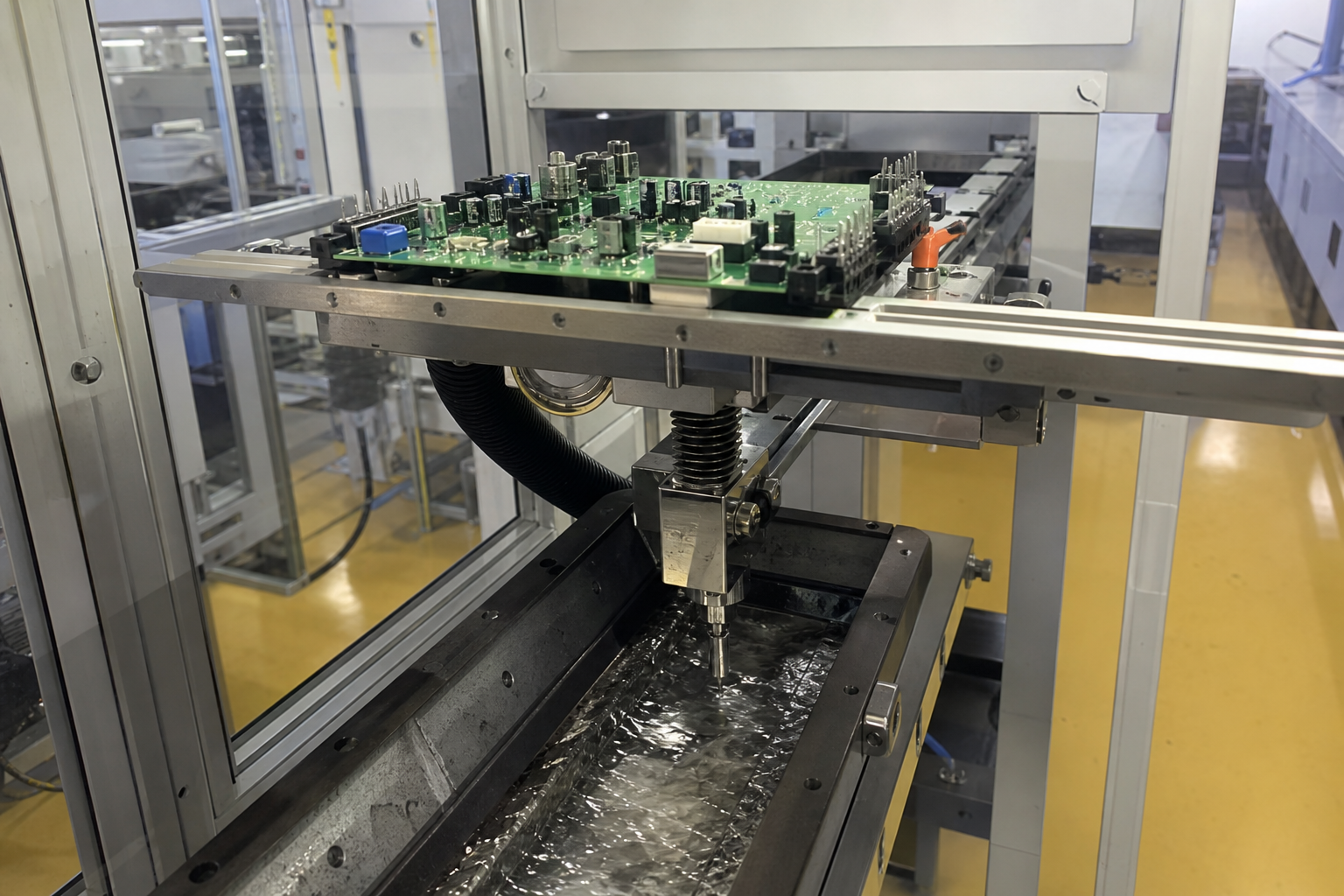

SMT lines get the glamour. Mixed-technology boards still need through-hole joints that a full wave would cook or bridge. Selective soldering—mini-wave or point nozzles on a programmed path—exists to put heat only where pins demand it. The robot arm is the easy part. The cell dies on thermal recipe honesty: preheat, dwell, flux, and the thermal mass of connectors that do not behave like the demo coupon.
Screwdriving cells own torque/angle. Adhesive cells own bead volume. Wire-harness cells own routing. This brief owns selective solder as a robotics-plus-process problem for electronics plants that still pretend through-hole is “someone else’s legacy.”
What the cell must get right before takt talk
- Board support and warpage — A warped panel lifts pins out of the wave window.
- Flux process — Too little and you invent dry joints; too much and you invent residues and test escapes.
- Preheat map — Top-side sensitive parts versus bottom-side thermal demand.
- Nozzle path and nitrogen — Oxidation and bridging are process outcomes, not mysteries.
- Connector thermal mass — Large pins steal heat; recipes copied from fine pins fail loudly.
Reach envelopes are CAD. Thermal envelopes are yield.

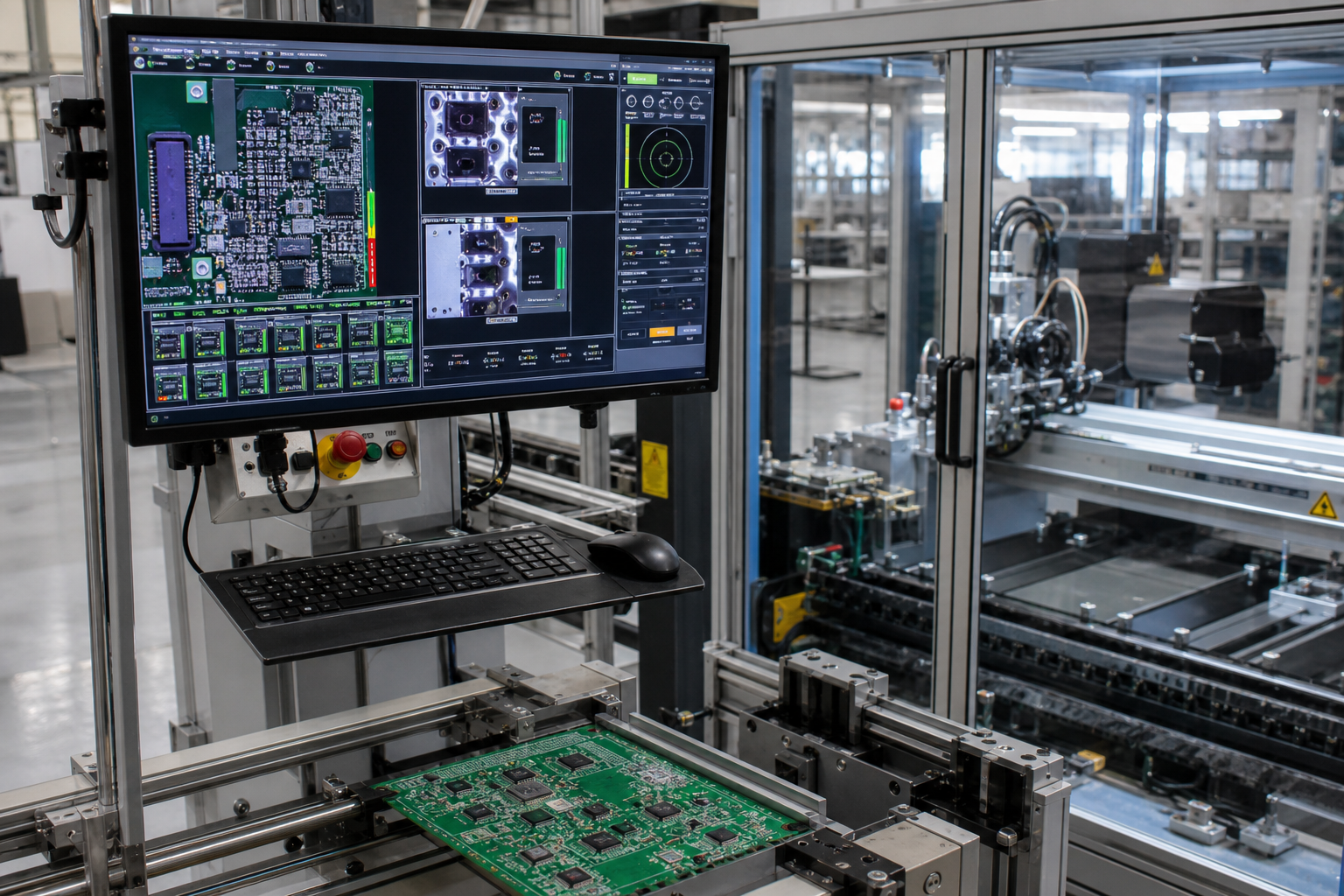

Inspection that closes the loop
Selective solder without inspection is a hope machine. Plants that scale use:
- Targeted AOI / AOI-SPI hybrid checks on through-hole fillets where geometry allows.
- X-ray sampling on hidden joints and high-reliability connectors.
- First-article thermal couple boards when a new connector family enters MES.
A shiny fillet photo is not a void-free barrel.
If disposition cannot stop the lot, the camera is decoration.
Short rules that keep robotics honest
- Freeze flux, nozzle, and preheat as one MoC set with the robot path.
- Ban “same recipe, new connector” without a thermal trial.
- Count bridging and insufficient-fill as process KPIs, not operator mood.
Laser-weld EV cells own a different joining physics. Adaptive welding robots own seam tracking on metal. This page owns selective solder for mixed-tech electronics. Do not buy a six-axis and skip the thermal study.
